Shelly 3EM-63T Gen3
Shelly 3EM-63T Gen3
Shelly 3EM-63T Gen3


Shelly 3EM-63T Gen3

99,74 €

Kompaktan mjerač energije s ravnim terminalima, dizajniran za nadzor trofaznog sustava ili tri neovisna jednofazna kruga.
Besprijekorno se integrira u pametne kućne sustave ili profesionalne instalacije, pružajući točne i trenutačne podatke za optimizaciju energetske učinkovitosti.



Garancija (uključena u cijenu proizvoda): 3 godine u slučaju kvara uređaja kada se koristi u skladu i uvjetima opisanima u korisničkim uputama

U dolasku

Nema na zalihi

SKU: 020 Kategorije: ,


Opis



  • Mjerenje u 4 kvadranta
  • Višestruki načini priključenja: trofazne ili jednofazne instalacije
  • Bezkontaktno mjerenje struje putem strujnih transformatora
  • Detekcija pogrešnog redoslijeda faza (opcionalno)
  • Prag bez opterećenja
  • Optički pulsni indikator potrošnje energije
  • Sat stvarnog vremena (RTC): podaci zadržavaju točne vremenske oznake čak i u slučaju prekida internetske veze
  • Zapisivanje podataka: do 7 dana podataka pohranjenih u uređaju za kasnije preuzimanje
  • Točnost: Klasa B (IEC 62053-21)
  • Spreman za fotonaponske sustave (Photovoltaic ready)



Dodatne informacije:

Q

Quantity Value
Physical
Size (HxWxD):
  • 21x54x42 mm / 0.83×2.13×1.65 in (Shelly 3EM-63W Gen3, without the wires)
  • 31x54x42 mm / 1.22×2.13×1.65 in (Shelly 3EM-63T Gen3, without the wire)
Wires length: 260 mm (including the flat terminal)
Weight:
  • 58 g / 2.05 oz (Shelly 3EM-63W Gen3, including the wires)
  • 52 g / 1.83 oz (Shelly 3EM-63T Gen3, including the wire)

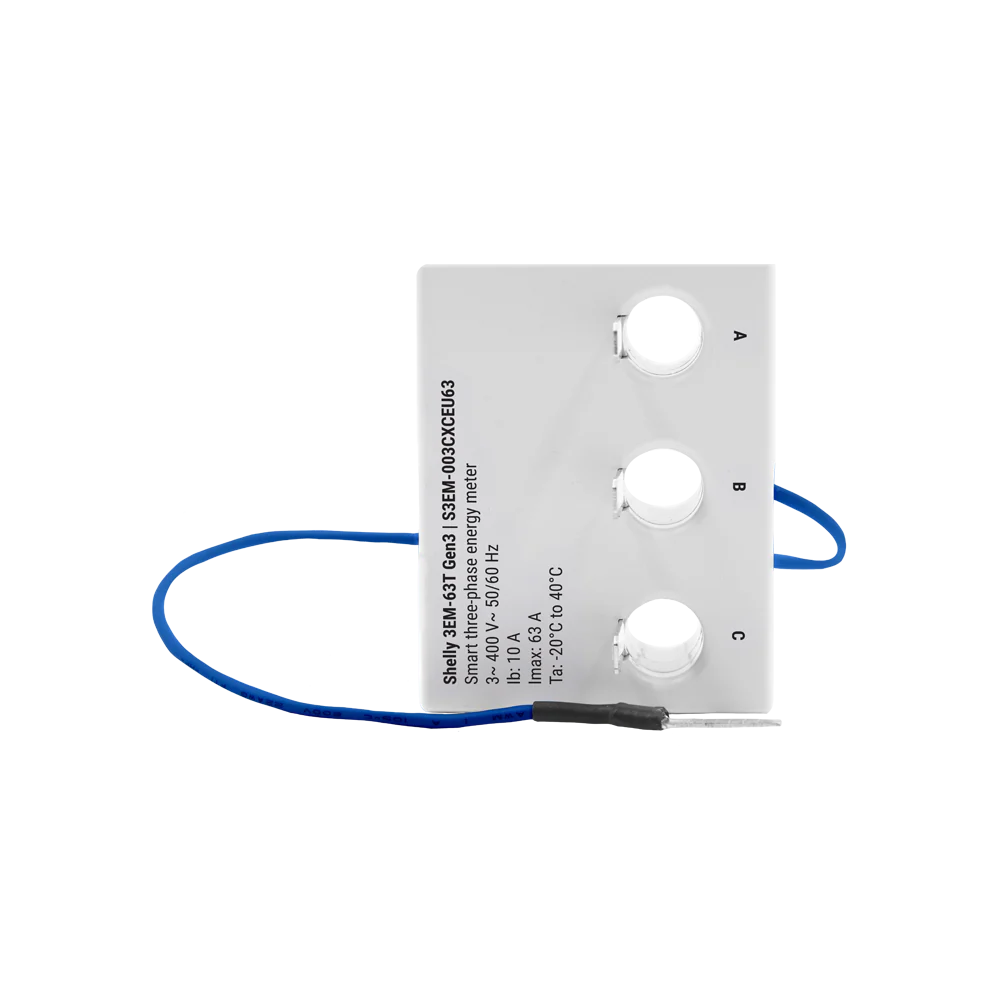

Conductor aperture: Ø8 mm / Ø0.3 in

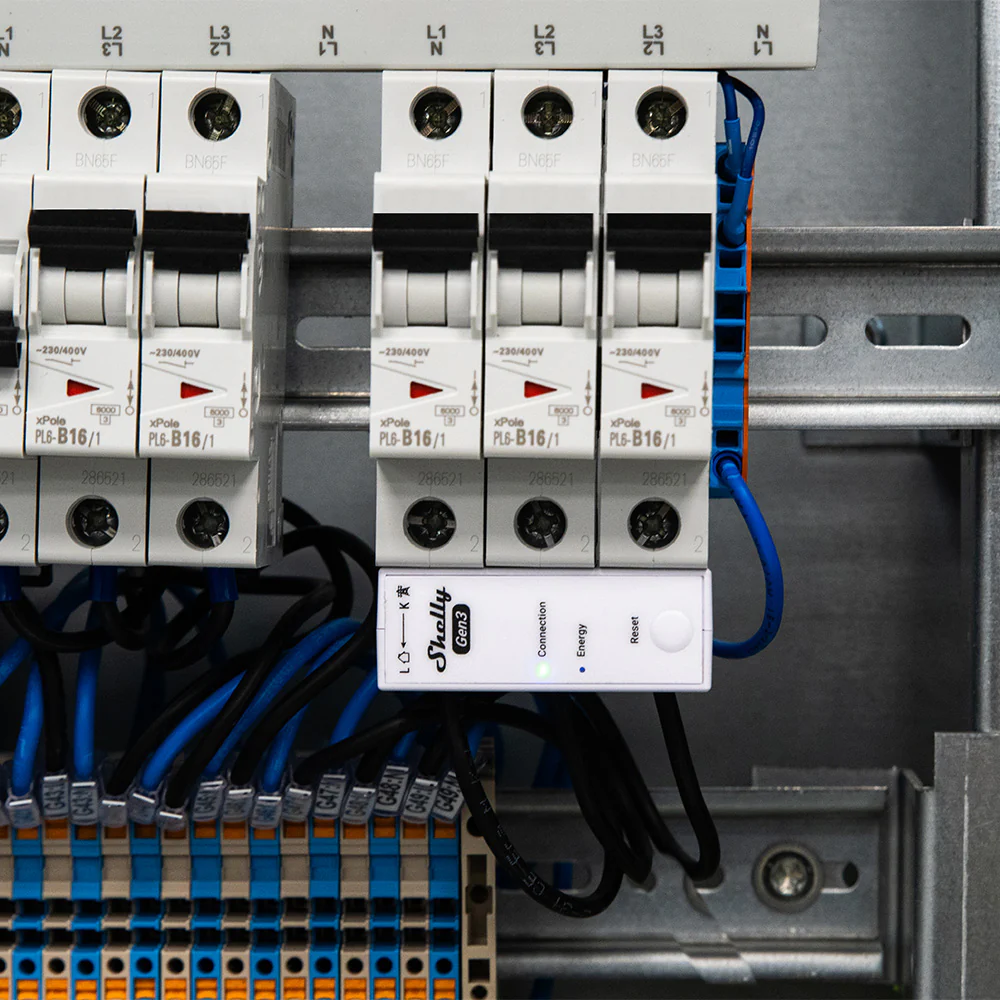

Mounting: Above or under DIN-rail mounted circuit breakers
Shell material: Plastic
Shell color: White
Environmental
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft
Electrical
Power supply: 220-240 V~ 50/60 Hz (between LA and N)
Power consumption: < 2 W
External protection: 63 A, tripping characteristic B or C,
6 kA interrupting rating,
Energy limiting class 3
Sensors, meters
Internal-temperature sensor: Yes
Voltmeters (RMS for each phase): 220-240 V~ 50/60 Hz
Voltmeters accuracy: better than ±1%
Ammeters (RMS via integrated CT for each phase): 0 – 63 A (130 A saturation)
Ammeters accuracy: ±1 % (2 – 63 A), ±2 % (1 – 2 A), ±5 % (0 – 1 A)
Power and energy meters:
  • Active and apparent power
  • Active and apparent energy
  • Power factor
  • Fundamental active and fundamental reactive energy
No load threshold: 30 VA
Measurement data storage: At least 7 days of 1 min data resolution
Data export:
  • CSV for PQ recorded values
  • JSON format export through RPC
Radio
Wi-Fi
Protocol: 802.11 b/g/n
RF band: 2401 – 2483 МHz
Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)
Bluetooth
Protocol: 4.2
RF band: 2400 – 2483.5 MHz
Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)
Microcontroller unit
CPU: ESP-Shelly-C38F
Flash: 8 MB
Firmware capabilities
Schedules: 20
Webhooks (URL actions): 20 with 5 URLs per hook
Scripting: Yes
MQTT: Yes
