Opis
Shelly Wall Display x2i karakteristike

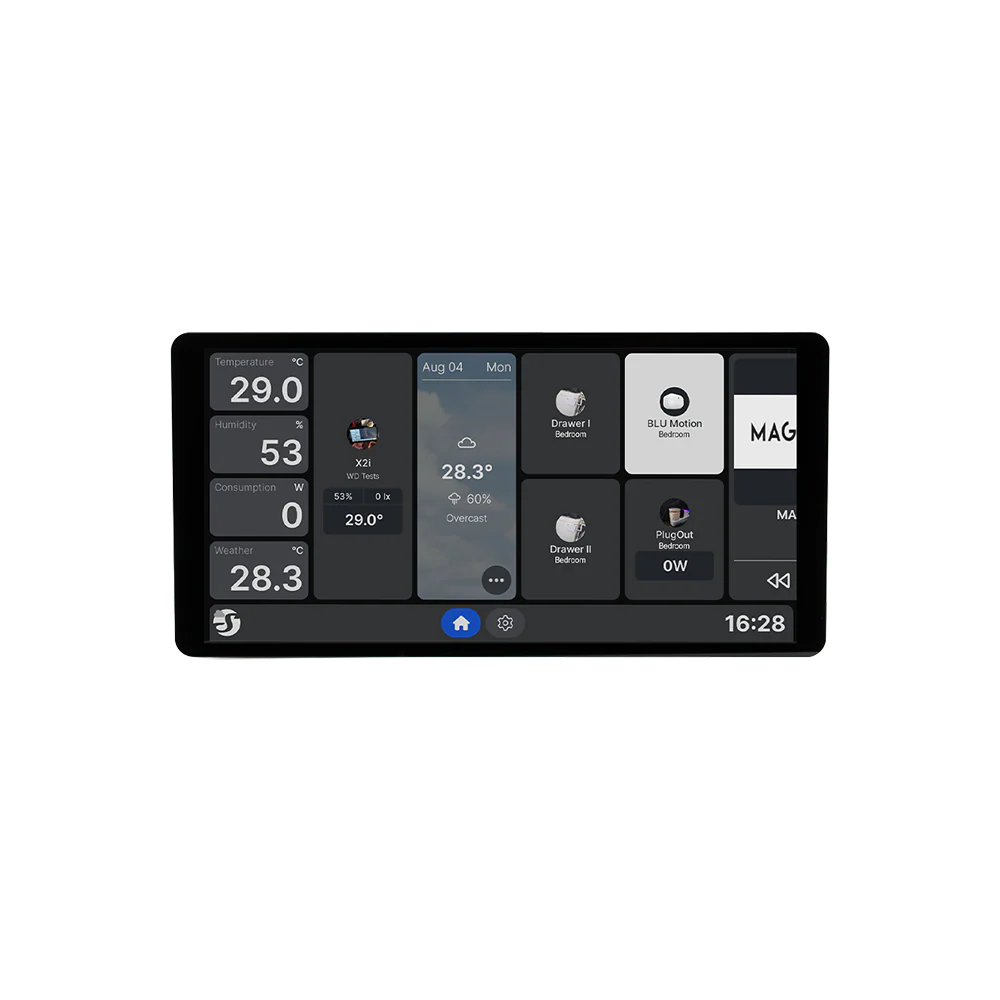

- Zaslon u boji osjetljiv na dodir od 6,95” (panoramski ili vertikalni prikaz)
- Bluetooth 5.0 i Wi-Fi 6 Dual Band povezivost (2,4 GHz i 5 GHz)
- Ultra-brzi četverojezgreni procesor za trenutačan odaziv
- Izmjenjiva baza napajanja
- Praćenje potrošnje energije za povezane Shelly PM uređaje
- Ugrađeni relej od 5 A za upravljanje rasvjetom
- Ugrađeni zvučnik snage 0,8 W
- Podrška za Bluetooth i SONOS zvučnike
- Ugrađeni LUX senzor, senzor blizine i G-senzor (za upravljanje gestama)
- Podržava napajanje 100–240 V~ ili USB-C (5 V⎓) za fleksibilnu instalaciju
- Jednostavna navigacija i prilagodljiv početni zaslon
- Kompatibilno sa Shelly Smart Control aplikacijom i Home Assistantom
Garancija (uključena u cijenu proizvoda): 2 godine u slučaju kvara uređaja kada se koristi u skladu i uvjetima opisanima u korisničkim uputama
Dodatne informacije:
| Quantity | Value |
|---|---|
| Physical | |

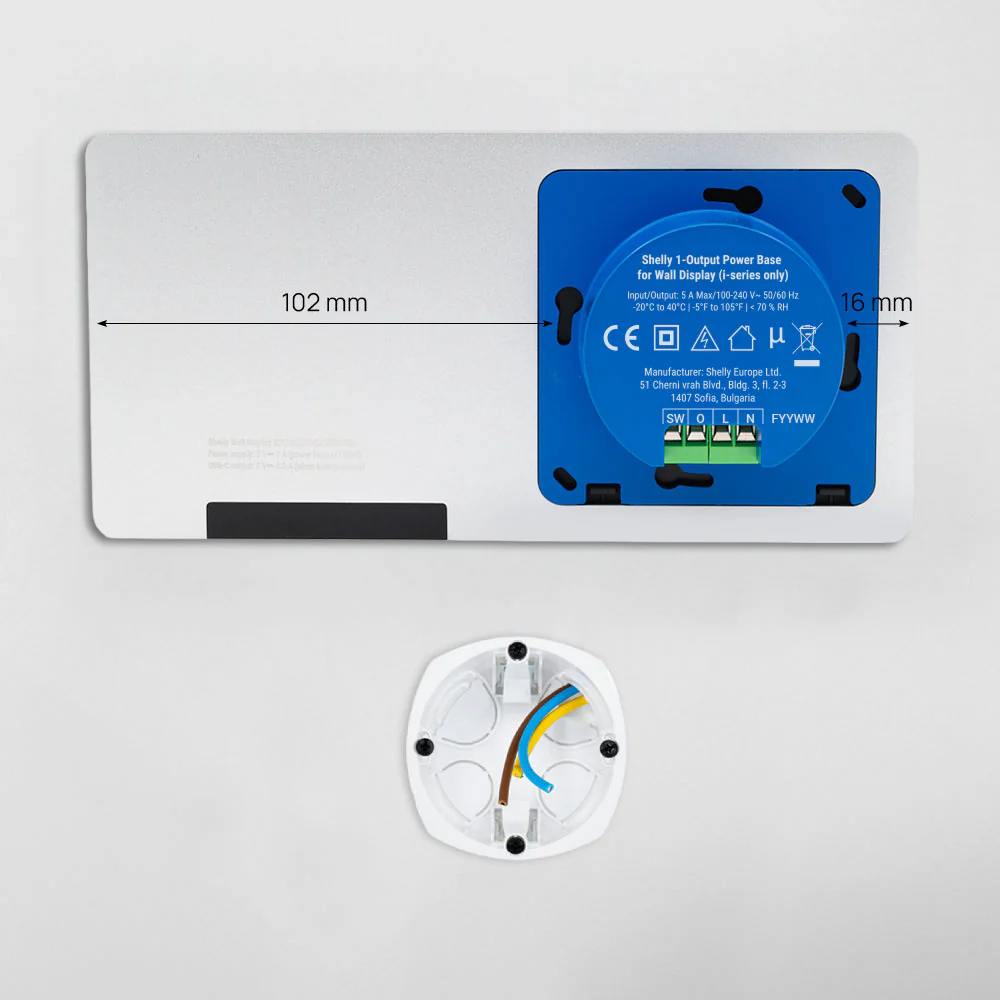

| Size (HxWxD): | With power base: 87x178x36 mm / 3.43x7x1.42 inch
Without power base: 87x178x11 / 3.43x7x0.43 inch |
| Weight: | With power base: 292 g / 10.3 oz
Without power base: 246 g / 8.68 oz |
| Touch Screen: | 5-point capacitive |
| Screen resolution, px: | 1440x720p |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 inch |
| Mounting: | Wall box |
| Shell material: | Plastic, aluminum, glass |
| Shell color: | Display: Black, Silver
1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
| Speaker: | 0.8W*1 |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 100-240 V~, 50/60Hz |
| Power consumption: | < 5 W |
| USB TYPE-C power supply: | 5 V⎓, 1 A |
| Output circuits ratings | |
| Max. switching voltage: | 240 ~ |
| Max. switching current: | 5 A |
| USB TYPE-C, voltage: | 5 V⎓ |
| USB TYPE-C, current: | 0.5 A |
| Sensors, meters | |
| Light sensor: | Yes |
| Microphone: | Yes |
| G-sensor: | Yes |
| Proximity sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | Wi-Fi 6 Dual Band |
| RF band: | 2412 – 2472 MHz
5150 – 5850 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth – | |
| Protocol: | 5.0 |
| RF band: | 2402 – 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
| Microcontroller unit | |
| CPU: | Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
| RAM: | 2 GB |
| Flash: | 8 GB |
| System: | Android 11 |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 2 URLs per hook… |
| Scripting: | No |
| MQTT: | Yes |
